Comprehensive Range of Cable Glands

×

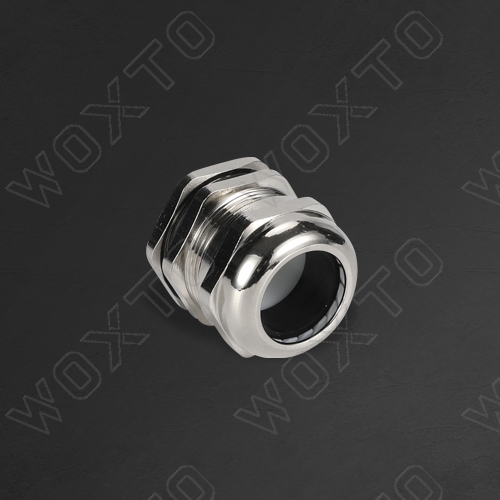

Brass PG Cable Gland

The Nickel-Plated Brass PG Cable Gland is crafted from high-quality brass and features an IP68 waterproof rating, making it ideal for use in a variety of high-pressure applications. Widely used in instrumentation, marine environments, machinery, and more, this cable gland is suitable for both armored and unarmored cable types, providing a wide clamping range for various cable sizes while offering excellent anti-corrosion protection.

As a professional manufacturer of nickel-plated brass PG cable glands, we design these glands with a broad and variable clamping range, and the connection thread length can be customized to meet specific requirements. The brass PG cable gland is well-suited for harsh and high-pressure environments where heavy machinery is in operation, with a working temperature range from -40°C to 120°C.

The Nickel-Plated Brass PG Cable Gland offers superior resistance to corrosion, making it suitable for use in challenging environments that involve exposure to salt water, weak acids, gasoline, alcohol, and other corrosive substances.

Choose our Brass PG Cable Gland for a reliable, durable, and versatile solution that ensures the safety and longevity of your cable installations in demanding industrial and marine environments.

Attribute	Details
Size	PG 7 to PG 48 & M12 to M63
Standard	BS 6121: Part-1:2005
Function	Maximum strain relief through clamping range. Trapezoidal thread with high torque guarantee.
Ingress Protection	IP68
Thread	PG and Metric
Operating Temp.	-25°C to +80°C
Material	Nickel Plated Brass
Accessories	Neoprene Washer, Polyamide Insert and O Ring
Application	Suitable for everyplace where IP68 protection is required against dust, liquid, water, strain, twist, and vibration.

×

A1 Industrial Cable Gland

The A1 Industrial Cable Gland is designed to provide a reliable seal on the outer sheaths of all types of unarmoured cables, suitable for both indoor and outdoor applications. Available in sizes ranging from 16mm to 90mm and ½” to 3½", this cable gland meets various international standards, including BS 6121: Part-1:2005, EN 50262: 1999, and IEC62444:2010.

Featuring an IP66 ingress protection rating, the A1 Industrial Cable Gland offers robust protection against dust and water, ensuring secure and durable performance. Constructed from high-quality materials such as Brass CW614N and Stainless Steel 316L, this gland is available with metric and NPT threads and is designed to operate effectively in temperatures ranging from -20°C to +80°C.

The cable gland is equipped with a neoprene compression seal, providing a tight and secure fit for unarmoured cables. Additional accessories include a PVC shroud, earth tag, thread seal, and serrated washer, enhancing its functionality and installation flexibility.

Choose our A1 Industrial Cable Gland for a dependable, durable, and versatile solution that ensures optimal sealing and protection for your cable installations in both indoor and outdoor environments.

Size	Thread Size ‘C’ Metric	Thread Size ‘C’ NPT	Optional Thread Metric	Optional Thread NPT	Length "E"	Cable Dia “A” Min	Cable Dia “A” Max	A/F	A/C
20S16	M20	1/2″	25	3/4"	10	3.20	8.70	24.00	26.20
20S	M20	1/2″	25	3/4"	10	6.10	11.70	24.00	26.20
20L	M20	1/2″	25	3/4"	10	6.50	14.00	27.00	29.50
25	M25	3/4”	32	1"	10	11.10	20.00	36.00	39.20
32	M32	1″	40	1.1/4"	10	17.00	26.30	41.00	45.00
40	M40	1.1/4”	50	1.1/2"	15	23.50	32.20	49.00	53.00
50S	M50	1.1/2”	63	2"	15	31.00	38.20	54.50	60.00
50L	M50	2”	63	2.1/2"	15	35.60	44.00	60.00	65.00
63S	M63	2”	75	2.1/2"	15	41.50	49.90	67.50	72.00
63L	M63	2.1/2”	75	3"	15	47.30	55.90	75.00	80.00
75S	M75	2.1/2”	90	3"	15	54.00	61.90	80.00	85.00
75L	M75	3"	90	3.1/2"	15	61.20	67.90	84.00	90.00
90	M90	3.1/2/”	100	4"	20	66.60	79.90

×

BW Cable Gland

The BW Cable Gland is engineered to provide mechanical cable retention and ensure electrical continuity through armoured wire termination, specifically designed for indoor applications. Available in sizes ranging from 20mm to 75mm, this cable gland meets international standards, including BS 6121: Part-1:2005, EN 50262:1999, and IEC62444:2010.

With an ingress protection rating of IP2X, the BW Cable Gland is constructed from high-quality Brass CW614N and features a metric thread for secure installation. It is designed to operate effectively in a wide temperature range from -60°C to +200°C, making it suitable for various environments.

Specially designed for Single Wire Armour (SWA) cables, the BW Cable Gland features a two-part armour lock, providing secure cable retention and easy installation. Accessories include a PVC shroud, earth tag, and galvanized steel lock nut, enhancing its functionality and ease of use.

Choose our BW Cable Gland for a reliable and efficient solution that ensures secure cable retention and electrical continuity for your indoor cable installations.

Gland Size	Thread Size Metric ‘C’	Length ‘E’	Cable Range Max ‘A’	Cable Range Max ‘B’	Armour Wire Dia	A/F	A/C
20s	M20	10	12.5	16	0.9-1.25	24	26.2
20	M20	10	15	20	126-160	24	26.2
25	M25	10	15	27.5	1.25-1.60	32	35
32	M32	10	20.5	34.5	1.60-2.00	40.5	45
40	M40	10	34	41	1.60-3.00	48	52
50s	M50	15	38.5	47	2.0-2.50	55	60
50	M50	15	44.5	52	2.5	61	65
63S	M63	15	51	59.2	2.5	70	75
63	M63	15	56.8	65.5	2.5	75	80
75s	M75	15	64	74	2.5-3.15	85	90
75	M75	15	68.2	79.5	3.15	90	95

×

BW 4 Cable Gland

The BW 4 Cable Gland is specifically designed to provide mechanical cable retention and maintain electrical continuity through armoured wire termination, making it ideal for indoor applications. Available in sizes from 20mm to 90mm, this cable gland adheres to international standards, including BS 6121: Part-1:2005, EN 50262:1999, and IEC62444:2010.

Constructed from high-quality Brass CW614N, the BW 4 Cable Gland features a metric thread, ensuring a secure and durable installation. With an ingress protection rating of IP2X, it offers effective protection against the ingress of solid objects, making it suitable for a range of environments. The gland operates efficiently in temperatures ranging from -60°C to +200°C.

Designed for Single Wire Armour (SWA) cables, the BW 4 Cable Gland includes an armoured ring that provides secure retention of the cable. Accessories such as a PVC shroud and earth tag enhance the gland's functionality and ease of installation.

Choose our BW 4 Cable Gland for a dependable and efficient solution that ensures secure cable retention and electrical continuity in your indoor cable installations.

Gland Size	Thread Size Metric ‘C’	Length ‘E’	Cable Range Max ‘A’	Cable RangeMax ‘B’	Armour Wire Dia	A/F	A/C
20s	M20	10	12.5	16	0.9-1.25	22	24.25
20	M20	10	15	20	0.9-1.25	24	26.2
25s	M25	10	18.5	24	1.25-1.6	30	33
25	M25	10	20.5	27	1.25-1.60	32	35
32s	M32	10	27.25	33.5	1.60-2.00	40.5	45
32	M32	10	27.25	34.5	1.60-2.00	40.5	45
40s	M40	15	31	37.5	1.60-3.00	44.5	50
40	M40	15	34	41	1.60-3.00	47.5	52
50S	M50	15	41	48	2.00-2.50	56.5	61.5
50	M50	155	44.5	54	2.00-2.50	61	65
63S	M63	15	51.5	59	2.5	67.5	72
63	M63	15	56.5	65.3	2.5	75	80
75S	M75	15	64	71.6	2.5	85	90
75	M75	15	69	78	2.50-3.15	90	95
90s	M90	20	80	90	3.15	100	110
90	M90	20	80	90	3.15	100	110

×

CW Industrial Cable Gland

The CW Industrial Cable Gland is designed to provide an environmental seal on the outer sheath of cables, offering mechanical cable retention and electrical continuity via armoured wire termination for both indoor and outdoor applications. Suitable for use with all types of Single Wire Armour (SWA) cables, this cable gland is available in sizes ranging from 16mm to 90mm and ½” to 3½”. It complies with international standards, including BS 6121: Part-1:2005, EN 50262:1999, and IEC62444:2010.

With an ingress protection rating of IP66, the CW Industrial Cable Gland ensures protection against dust and strong water jets, making it ideal for harsh environments. Constructed from high-quality Brass CW614N or Stainless Steel 316L, and available with metric and NPT threads, this cable gland is suitable for a wide range of applications. It operates effectively in temperatures ranging from -60°C to +125°C.

Equipped with LSOH (Low Smoke Zero Halogen) silicone seals and nylon washers, the CW Industrial Cable Gland provides a secure and safe seal. It features a universal anyway clamping ring and an outer compression seal, ensuring reliable performance in diverse conditions. Additional accessories include a PVC shroud, earth tag, and entry thread seal to enhance its functionality and ease of installation.

Choose our CW Industrial Cable Gland for a durable, versatile, and secure solution that guarantees optimal sealing and protection for your cable installations in both indoor and outdoor environments.

Gland Size	Thread Size C	Length ‘E’	Cable Range Max ‘A’	Cable Dia B Min	Cable Dia B Max	Armour Wire Dia	A/F	A/C
20s16	M20	10	9	6.1	13.1	0.9	24	26.2
20s	M20	10	12	9.5	16	0.9-1.25	24	26.2
20	M20	10	14.2	12.5	21	0.9-1.25	30	33
24	M25	10	20	14	22	1.20-1.60	36	39.2
25	M25	10	20	20	26	1.20-1.60	36	39.2
32	M32	10	24	23.5	33.5	1.60-2.00	46	50.6
40	M40	15	33	28	40.5	1.60-2.00	55	60
50s	M50	15	38.5	35	45.5	2.00-2.50	60	65
50	M50	15	44.5	40.5	53	2.00-2.50	70	75
63s	M63	15	50.5	45.5	59.5	2.5	75	80
63	M63	15	56.5	54.5	65.5	2.5	80	85
75s	M75	15	62.5	59	72	2.5	90	95
75	M75	15	68.5	66.5	78.5	2.5	100	110
90	M90	15	80.5	76.5	90.5	2.50-3.15	112	122

×

CW 4 PT Industrial Cable Gland

The CW 4 PT Industrial Cable Gland is specifically designed for use with Single Wire Armour (SWA) cables, providing a robust environmental seal on the cable's outer sheath. This cable gland ensures mechanical retention and electrical continuity through armoured wire termination, suitable for both indoor and outdoor applications across a wide range of environments. Available in sizes from 16mm to 90mm and ½” to 3½”, it meets international standards, including BS 6121: Part-1:2005, EN 50262:1999, and IEC62444:2010.

With an ingress protection rating of IP66, the CW 4 PT Industrial Cable Gland is highly resistant to dust and powerful water jets, ensuring secure and reliable performance in harsh conditions. Made from high-quality materials such as Brass CW614N and Stainless Steel 316L, it is available with both metric and NPT thread options. This gland is suitable for operating temperatures ranging from -20°C to +80°C.

Equipped with a neoprene seal, the gland features an armoured ring and an outer compression seal to provide superior protection and strain relief. Additional accessories, including a PVC shroud, earth tag, serrated washer, and entry thread seal, enhance its versatility and ease of installation.

Choose our CW 4 PT Industrial Cable Gland for a durable, efficient, and secure solution that guarantees optimal sealing and protection for your SWA cable installations in both indoor and outdoor environments.

Gland Size	Thread Size Metric ‘C’	Length ‘E’	Cable Dia Max ‘A’	Cable Dia "B" Min	Cable Dia "B" Max	Armour Wire Dia	A/F	A/C
20S16	20	10	12.5	6.6	13.5	0.9	22	24.25
20s	20	10	12.5	10.2	16	0.9-1.25	22	24.25
20	20	10	15	13.8	20.8	0.9-1.25	26	28.75
25s	25	10	18.5	16.5	24	1.20-1.60	30	33
25	25	10	20.5	21.9	27	1.20-1.60	34	38
32s	32	10	27.25	25.8	32.5	1.60-2.00	40.5	45
32	32	10	27.25	25.8	32.5	1.60-2.00	40.5	45
40s	40	15	31	30.5	38.5	1.60-2.00	44.5	50
40	40	15	34.5	32.5	41	1.60-2.00	47.5	52
50s	50	15	41	37.7	47	2.00-2.50	56.5	61.5
50	50	15	44.45	43	53.5	2.00-2.50	61	65
63s	63	15	51.5	48.5	59	2.5	68	73
63	63	15	56.75	54.5	65	2.5	75	80
75s	75	15	64	62.75	72	2.5	83.5	89
75	75	15	69	68.2	79	2.50-3.15	90	95
90s	90	15	80	75	86	2.50-3.15	100	110
90	90	15	80	75	86	2.50-3.15	100	110

×

E1W Cable Gland

The E1W Cable Gland is designed for indoor and outdoor use with all types of Single Wire Armour (SWA) cables, providing a comprehensive environmental seal on both the cable's inner and outer sheaths. This cable gland ensures mechanical retention and electrical continuity through armour wire termination, making it suitable for a wide range of demanding applications. Available in sizes from 16mm to 90mm, it meets international standards, including BS 6121: Part-1:2005, EN 50262:1999, and IEC62444:2010.

With an ingress protection rating of IP66, the E1W Cable Gland is highly resistant to dust and strong water jets, ensuring secure and reliable performance in harsh environments. It is constructed from premium materials such as Brass CW614N, Nickel-Plated Brass, or Stainless Steel 316L and comes with metric and NPT thread options. The gland is suitable for operating temperatures ranging from -60°C to +125°C.

The E1W Cable Gland features a displacement seal and a two-part armour lock, providing superior protection and strain relief. It is equipped with LSOH (Low Smoke Zero Halogen) silicone seals and nylon washers to ensure safe and secure sealing in diverse conditions. Additional accessories include a PVC shroud, earth tag, serrated washer, entry thread seal, adaptor, and reducer, enhancing its versatility and ease of installation.

Choose our E1W Cable Gland for a durable, efficient, and secure solution that guarantees optimal sealing and protection for your SWA cable installations in both indoor and outdoor environments.

Size	Thread Size ‘C’ Metric (ISO)	Thread Size ‘C’ Metric (ISO) NPT	Length ‘E"	Cable Range “A” Max	Cable Range “A” Min	Cable Range “B” Max	Armour Wire Dia	A/F	A/C
20S	M20	1/2″	10	6.1	11.7	9.5	16	0.9	24	26.2
20L	M20	1/2″	10	6.5	14	12.5	20.8	0.9-1.25	24	26.2
25S	M25	3/4″	10	11.3	20	20	26	0.9-1.25	30	33
32S	M32	1″	10	17	26	23.7	34	1.20-1.60	36	39.2
40S	M40	11/4″	10	23.6	32	28	40.5	1.60-2.00	46	50.5
50S	M50	11/2″	15	31.5	38	35	47	1.60-2.00	55	60
50L	M50	2"	15	35.8	44	44.5	53	2.00-2.50	60	65
63S	M63	2″	15	41.5	50.5	45.5	59.5	2.00-2.50	70	75
63L	M63	21/2″	15	47.5	56	54.6	67	2.00-2.50	75	80
75S	M75	21/2″	15	55	62	59	72	2.00-2.50	80	85
75L	M75	3"	15	62	68.5	66	78.5	2.00-2.50	90	95
90L	M90	3.1/2"	15	67	80	76.2	90.5	3.0-3.5	100	110

×

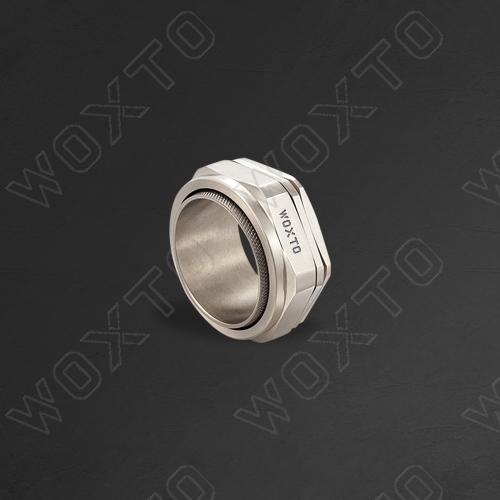

BWR Rotary Cable Gland

The BWR Rotary Cable Gland is designed to provide mechanical cable retention and ensure electrical continuity through armoured wire termination, specifically for Single Wire Armour (SWA) cables in dry indoor environments. Available in sizes ranging from 00 to 06, this cable gland protects the armour wire while offering an easy-to-install solution for secure cable management.

Constructed from nickel-plated Brass CW614N, the BWR Rotary Cable Gland features a rotary cone design, enhancing its ease of installation and offering superior protection. It has an ingress protection rating of IP2X, providing adequate resistance against solid objects, and is suitable for use in temperatures ranging from -60°C to +200°C.

Additional accessories include an earth tag and PVC shroud, ensuring a complete and reliable installation for various indoor applications. The metric thread design allows for easy integration with existing setups, providing a dependable and efficient solution for your SWA cable installations.

Choose our BWR Rotary Cable Gland for a secure, easy-to-install, and efficient solution that ensures mechanical retention and electrical continuity for your indoor cable applications.

Gland Size	Thread 'C'	Thread 'E'	Cable Range Max 'A'	Cable Range Max 'B'	A/F	A/C
0	M20	10	12	16	22	24
1	M20	10	14	21.2	27	29.5
2	M25	10	20.2	27	35	37
3	M32	10	26.5	33.5	42	45
4	M40	10	32.5	40	52	58
5	M50	12	44.4	52.5	63	70
6	M63	12	55.3	79	80	85

×

ALCO Cable Gland

The ALCO Cable Gland is designed to provide mechanical cable retention and electrical continuity through armoured wire termination, making it suitable for dry indoor environments and all types of Single Wire Armour (SWA) cables. Available in sizes ranging from G204 to G755, this cable gland meets international standards, including BS 6121: Part-1:2005, EN 50262:1999, and IEC62444:2010.

Constructed from high-quality materials such as Brass CW614N and Stainless Steel 316L, the ALCO Cable Gland is built to withstand operating temperatures from -60°C to +200°C. With a metric thread design, it offers a secure and reliable installation for a wide range of applications.

The ALCO Cable Gland features an armoured ring, providing robust protection and retention of the cable. It has an ingress protection rating of IP2X, offering sufficient resistance against solid objects. Accessories such as a PVC shroud and earth tag enhance its functionality and ease of installation.

Choose our ALCO Cable Gland for a dependable, efficient, and secure solution that ensures optimal mechanical retention and electrical continuity for your SWA cable installations in dry indoor environments.

Gland Size	Thread Size 'C' Metric	Minimum Length of Thread 'D'	Cable Range Max 'A'	Cable Range Max 'B'	Armour Wire Dia	A/F	A/C
G - 204	M20	9	12.5	17	0.90-125	22	24.25
G - 206	M20	9	14.5	20	0.90-125	24	26.2
G - 254	M25	9	16	22	1.25-1.60	30	33
G - 256	M25	10	18.5	24	18.5	32	35
G - 324	M32	10	23.5	29.5	29.5	40.5	45
G - 326	M32	10	27.5	34	1.60-2.00	40.5	45
G - 405	M40	13	33.5	41.5	1.60-2.00	44.5	50
G - 503	M50	13	39.5	48.5	2.00-2.50	47.5	52
G - 505	M50	13	44.5	54.5	2.00-2.50	56.5	61.5
G - 636	M63	14	56	66	2.5	61	65
G - 753	M75	15	64	75.5	2.5	67.5	75
G - 755	M75	15	68	78	2.50-3.15	75	80

×

Double Compression Cable Gland

The Double Compression Cable Gland is designed for both indoor and outdoor use with all types of Single Wire Armour (SWA) cables, providing an environmental seal on both the inner and outer sheaths of the cable. This cable gland ensures mechanical retention and electrical continuity through armoured wire termination, offering robust protection for a wide range of applications. Available in sizes from 3/4″ to 4.1/2″, it meets international standards, including BS 6121: Part-1:2005 and EN 50262:1999.

Constructed from high-quality Brass BS 2874, the Double Compression Cable Gland features an IP66 ingress protection rating, providing excellent resistance against dust and strong water jets. With metric and BSC (ET) thread options, it is suitable for diverse installation needs and environments.

Operating effectively in temperatures from -20°C to +80°C, this cable gland is ideal for use with Steel Wire Armour (SWA) cables. It includes a displacement seal and a universal anyway clamping ring, ensuring a secure and tight fit. Additional accessories such as a shroud, earth tag, serrated washer, lock nut, and entry thread seal enhance its functionality and ease of installation.

Choose our Double Compression Cable Gland for a reliable, secure, and versatile solution that provides superior sealing, protection, and continuity for your SWA cable installations in challenging environments.

WBC Series	Nipple Size C (Inches)	Suitable for Cable Overall Dia From	Suitable for Cable Overall Dia To	Dia MM A	Dia MM B	(A/F)	(A/C)	Length E MM
WBC 01SS	3/4"	6	12.5	12.5	13	21	24	13
WBC 01S	3/4"	13	16.5	14.5	18	25	29	15
WBC 01	3/4"	16.5	18.5	14.5	19	27.5	31.5	15
WBC 01A	1"	16.5	2	14.5	19	27.5	31.5	15
WBC 02	1"	18.5	20	18	21	30	34.5	15
WBC 02A	3/4"	18.5	20	14.5	21	30	34.5	15
WBC 03	1"	20.5	23	19	23.5	31.5	36	15
WBC 04	1"	23.5	26	20.5	27	36	41.5	15
WBC 04A	1.1/4"	23.5	26	22	27	36	41.5	15

×

Single Compression Cable Gland

The Single Compression Cable Gland is designed to provide a secure seal on the outer sheaths of unarmored cables in both indoor and outdoor environments. Available in sizes from M16 to M100 and 3/8″ to 4”, this cable gland conforms to international standards, including BS 6121: Part-1:2005 and EN 50262:1999.

Constructed from high-quality Brass BS 2874, the Single Compression Cable Gland features an IP65 ingress protection rating, ensuring reliable resistance against dust and low-pressure water jets. With metric and BSC (ET) thread options, it offers versatile installation compatibility for various applications.

The cable gland operates effectively in temperatures ranging from -20°C to +80°C and includes an outer compression seal to ensure a tight and secure fit. Accessories such as a shroud, earth tag, lock nut, and serrated washer enhance its functionality and ease of installation.

Choose our Single Compression Cable Gland for a durable, reliable, and versatile solution that provides effective sealing and protection for your unarmored cable installations in diverse environments.

WBC Series	Nipple Size C (Inches)	Suitable for Cable Overall Dia From	Suitable for Cable Overall Dia To	Dia MM A	Dia MM B	(A/F)	(A/C)	Length E MM
WBC1	16X 1.5	9	12	12	16	22	25.5	9
WBC2	16X 1.5	12	15.5	12	18.5	25	29	9
WBC3	20X 1.5	12	15.5	15	18.5	25	29	9
WBC4	20X 1.5	18	21	15	24	30	34.5	9.5
WBC5	25X 1.5	18	21	20.5	24	31.5	36	9.5
WBC6	25X 1.5	21	25	20.5	28.5	35	40	10
WBC7	32X 1.5	25	29	27	33	40	46	12
WBC8	40X 1.5	29	33	34	37	46	53	12
WBC9	40X 1.5	33	38	34	41	50	57.5	12
WBC10	50X 1.5	38	43	44	47	58	67	13
WBC11	50X 1.5	43	50	44	52	65	75	13
WBC12	63X 1.5	48	54	55	61.5	73	84	14
WBC13	63X 1.5	55	60	55	65	77	89	14
WBC14	75X 1.5	61	66	68	71	85	98	15
WBC15	75X 1.5	67	72	67	76	90	104	15
WBC16	82X 1.5	73	79	73	82	97	112	17
WBC17	90X 1.5	79	84	81	91	108	124	19
WBC18	100X 1.5	84.5	92	91	98	117	135	20
